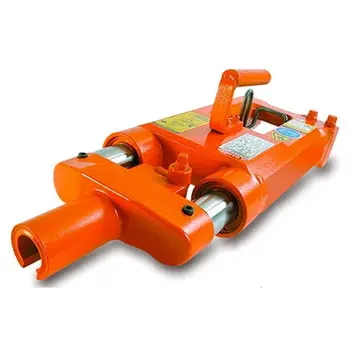

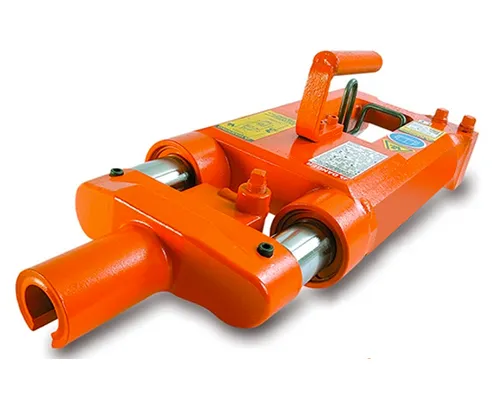

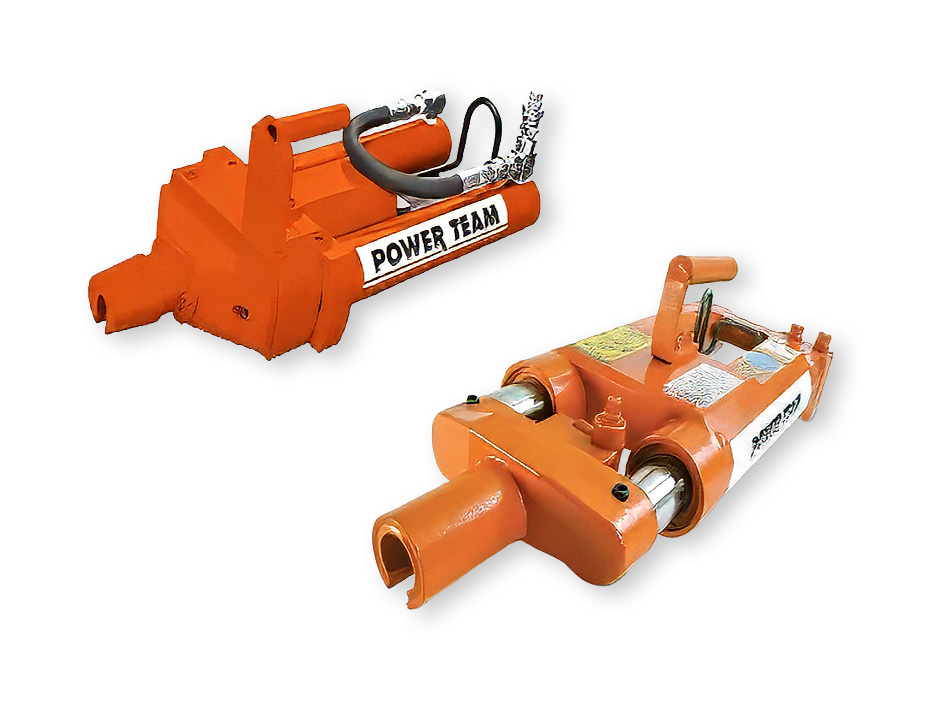

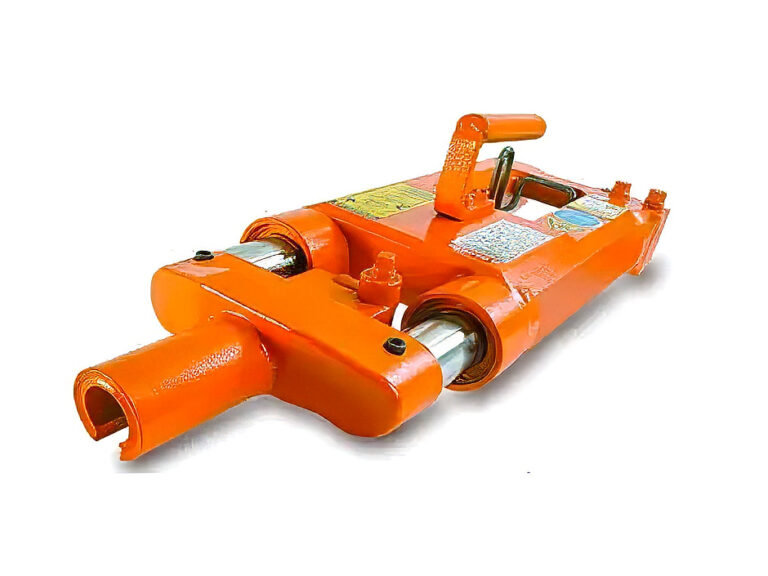

Monostrand Stressing Jacks

Where and How Are They Used?

Monostrand stressing jacks are used in post-tensioning systems for concrete reinforcement. Common applications include:

• Residential and Commercial Buildings: Post-tensioned slabs in multistory buildings reduce material usage and improve floor plan flexibility.

• Bridges: Used in both deck and girder construction, allowing longer spans and reduced material costs.

• Parking Structures: They provide the strength needed for wide, column-free spans that maximize parking space.

• Stadiums and Arenas: For both their wide-span roof structures and heavy-load bearing foundations.

• Industrial Facilities: For tanks, silos, and pavements that require high structural performance.

The process involves threading a strand through a pre-placed duct in the concrete, securing it at one end, and then applying the stressing jack to the other end to apply tension. After reaching the required tension, the strand is anchored in place using wedges, and the jack is removed.

Accessories Required

To ensure proper function and safety, monostrand stressing jacks are used with several essential accessories:

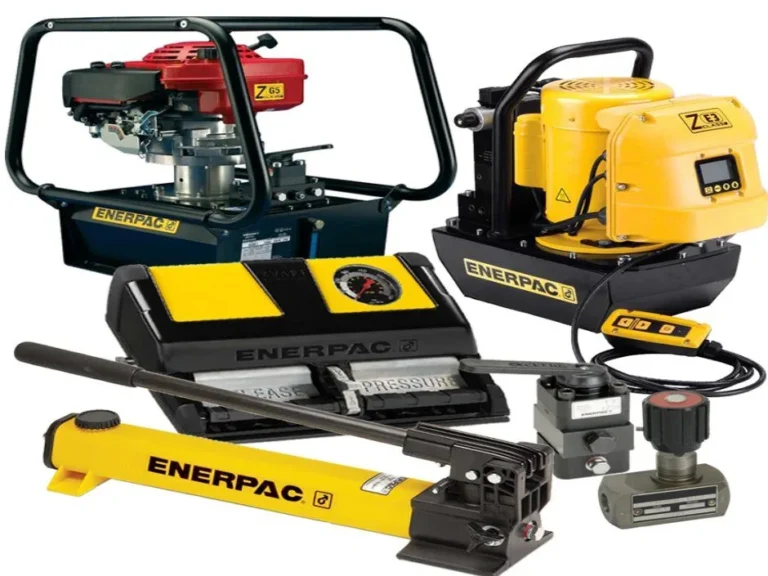

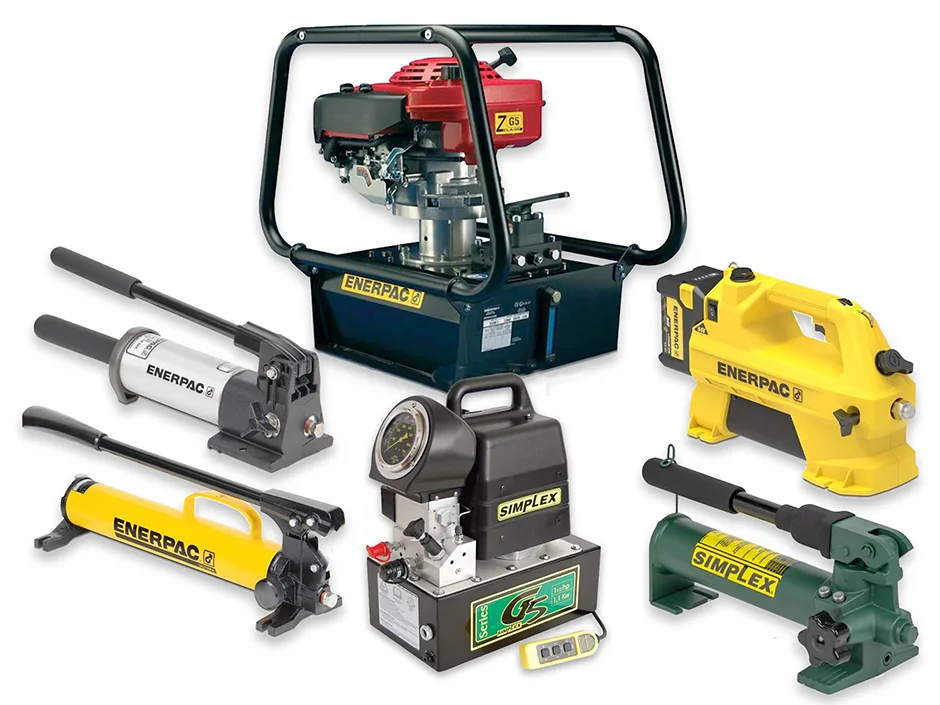

1. Hydraulic Pump: Provides the high-pressure fluid that powers the jack.

2. Wedges: Specially designed grips that lock the strand in place once the jack releases.

3. Barrels and Grippers: These guide and grip the strand during the tensioning process.

4. Jack Stands and Jack Extensions: For stabilizing and adapting the jack to different tendon lengths and slab depths.

5. Calibrated Pressure Gauges: Ensures precise monitoring of the hydraulic pressure, which correlates to the force applied on the strand.

6. Safety Guards and Hoses: For safe and efficient hydraulic operation.

Industries Using Monostrand Stressing Jacks in the USA

In the United States, monostrand stressing jacks are widely used across several industries:

• Construction: Especially in commercial, residential, and infrastructure projects.

• Civil Engineering: For projects involving bridges, highways, and public works.

• Energy and Utilities: Including nuclear power plants and wind turbine foundations that require robust post-tensioned concrete.

• Transportation: For railway and airport construction where heavy-duty concrete structures are essential.

Interesting Facts

• Precision is Critical: Monostrand jacks must be carefully calibrated to ensure the correct amount of tension is applied, typically measured in kilopounds (kips).

• Reusable Equipment: Most stressing jacks and their accessories are reusable across multiple projects with minimal maintenance.

• Safety Considerations: Operators must be trained, as improperly handled stressing jacks can cause sudden strand release, which is highly dangerous.

• Adaptability: Monostrand jacks are compact compared to multistrand systems, making them ideal for smaller or more constrained construction sites.

• Environmental Benefits: Post-tensioning with monostrand jacks reduces the amount of concrete needed for equivalent strength, indirectly reducing CO₂ emissions associated with cement production.

Conclusion

Monostrand stressing jacks are vital to modern concrete construction, offering unmatched strength and design flexibility through hydraulic precision. While they operate through a mix of hydraulic power and mechanical gripping, they are fundamentally hydraulic tools. Their role in enhancing infrastructure resilience and sustainability ensures their continued relevance in the construction and civil engineering industries across the USA. For any project involving post-tensioned concrete, these compact but powerful tools are indispensable.
